SML gets into lamination lines for aseptic packaging

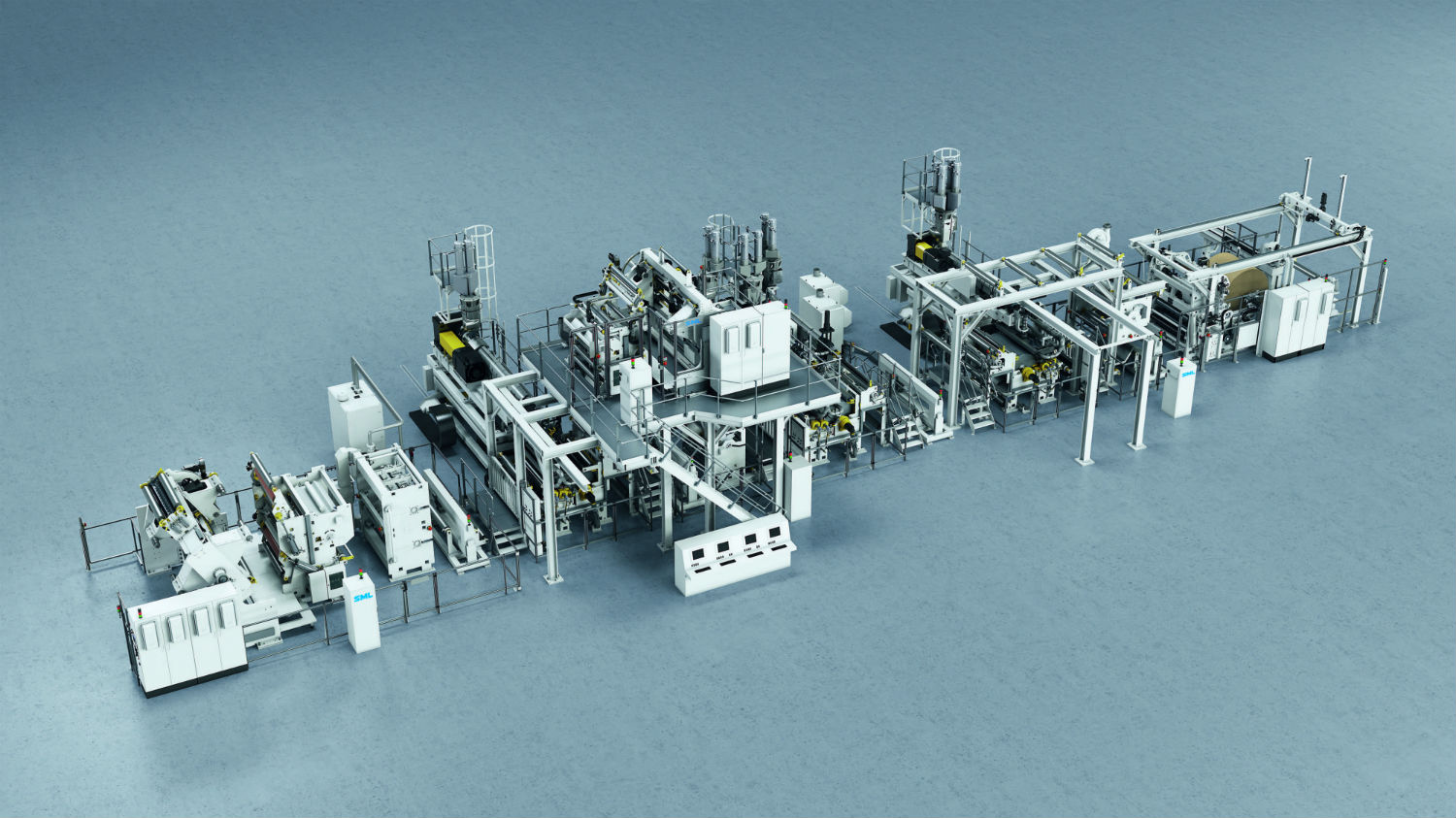

With the development of the new triplex extrusion lamination line for aseptic board packaging, SML takes the production of aseptic materials for beverage cartons and flexible pouches to the next level.

Precise interaction for excellent product quality

In sharp contrast to nearly all existing extrusion lamination lines for aseptic board packaging, SMLs new line is suited for processing thin paper as well as paperboard at an equally high quality. "Our new line offers a very wide application area - from antiseptic materials for classical beverage cartons to flexible pouches. Its essential characteristic is the very precise interaction between the different unwinding units and laminators, managing very different materials like paper, board and aluminium", explains Mario Hoellnsteiner, the responsible product manager of SML

Combine the options and gain the edge – the SML triplex lines for aseptic packaging!

Automatic drum winder for heavy loads

Another technical highlight of SMLs new triplex extrusion lamination line for aseptic board packaging is the fully automatic drum winder 1800, suitable for heavy product rolls up to four tons. Finally, the lamination line is setting new standards in automation and digitalisation - providing a central control station system for all production processes, remote operation, supervision and service, as well as interconnectivity with other machines and systems.

Technical features:

Max. mechanical machine speed: 400 m/min.
Roller width: 1,500mm
Line design: LID (Laminate / Inside / Decor)
Winding: Drum winder W1800 with 6" winding shafts
Max. winding diameter: 1,800 mm
Max. roll weight: 4,000 kg
Product width: 700 - 1,350 mm
Total product weight: 150 - 400 g/m²
