Unrivalled solution

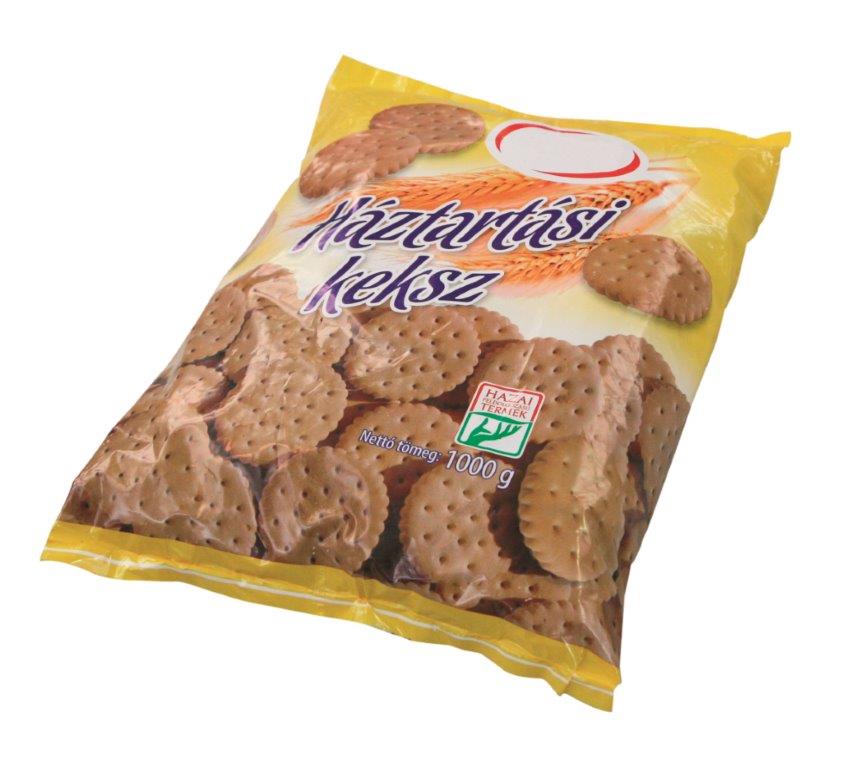

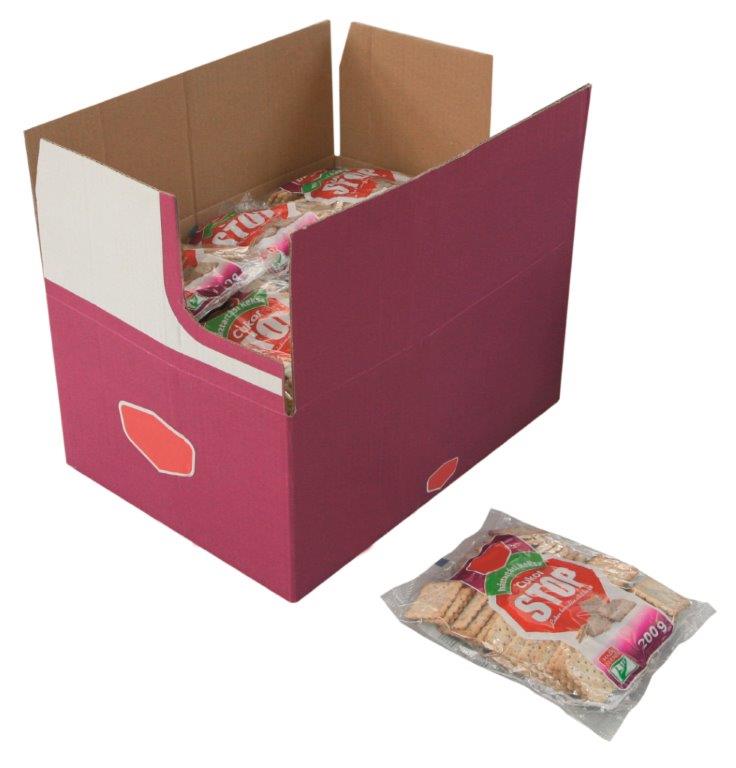

This particularly compact system has been specifically designed for a private label manufacturer to pack pillow bags of biscuits into an RSC case in a laying configuration.

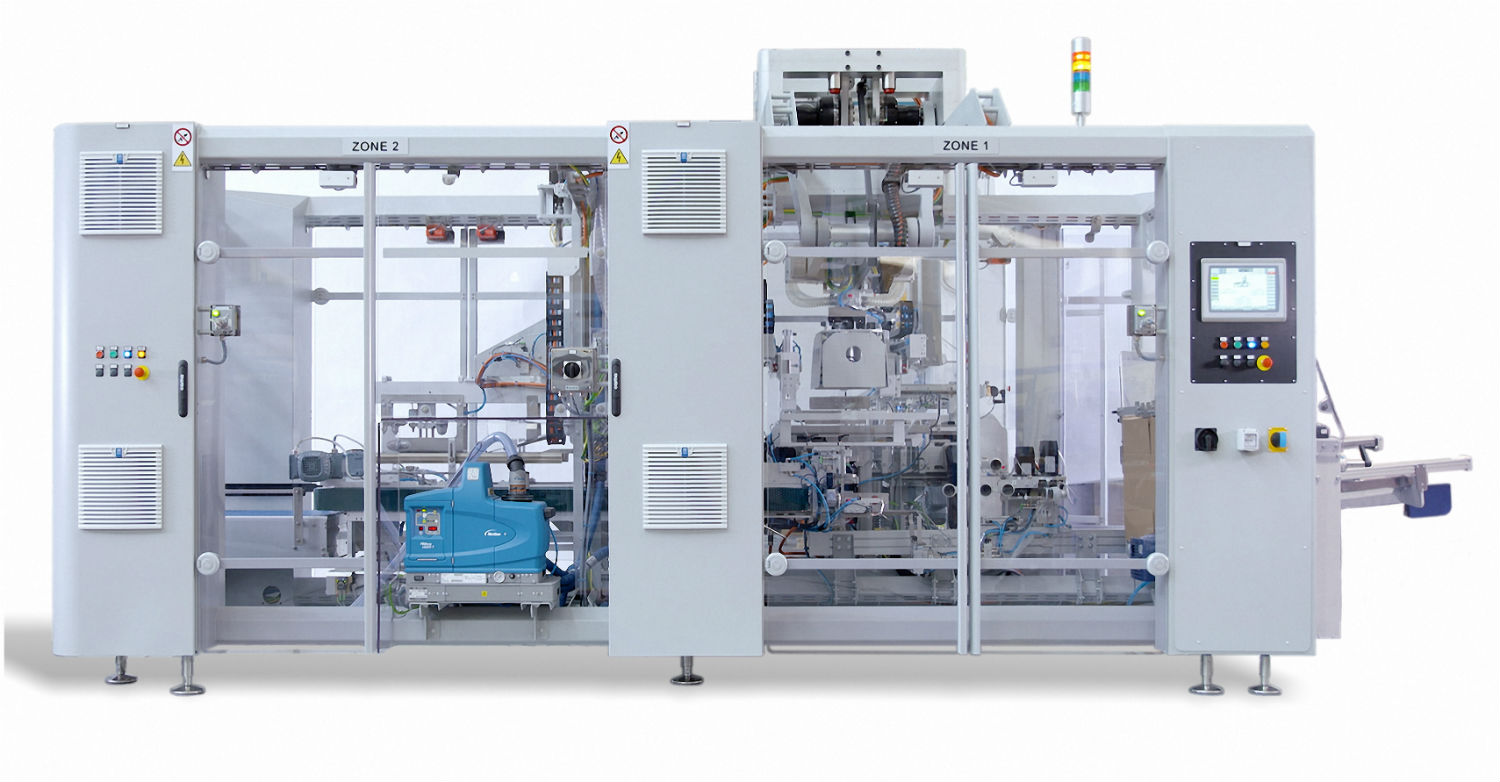

Monoblock loading system

It is made up by a case erecting machine, a 2-axis robot and a lidding machine all included in a monoblock modular system. This solution integrates a product configuration loading unit with triaflex robots and a smart vision system to suit various case patterns.

Products arrive on one or two lanes and are conveyed to the unit infeed where two vision guided robots sort and pick loose products and prepare the requested layer configuration. The grouped products are then collected by a two-axis robot by means of a pick-up head and loaded inside the RSC case previously erected. Loaded packages are then transferred to the sealing unit where the top flaps are folded and closed. 11 different formats in RSC Case styles are handled up to a max speed of 120 products per minute. Downtime for size changing is drastically reduced through this innovative concept.

This unique solution proposed by Cama features an approx 30% reduced footprint compared to the standard systems currently on the market.
